Technical Specifiaction Comparisons

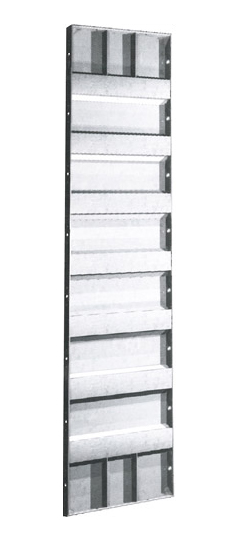

Metric forming system	DFI - Warrior1000
Aluminum Face Sheet	3.048 MM THK, 5052 H38 Series (HINDALCO Make).
Aluminum Extrusion	6061 T6
Side Rail	54 mm X 9.8mm Thk
Avg Wt. of System	36 Kg per SQM.
Aluminum	27 Kg per SQM.
MS Steel	9 Kg Per SQM.
Welding	Manually
Side Rail Welding	Continues
Side Rail Hole Pattern	150 / 300 MM. So Standard Panels can be used both way / Rotate 180* (No Top No Bottom)
Corner Gussets	Provided
Load Rating of panel	4.8 TON per SQM.
No of Componants	Not more than 8
Vertical form - Inner	CL & WF
Vertical form - Outer	CAP, WF & CAP
% of Standard forms	90%
Estimate uses	1000 times
Reuses for Next Project	75% to 85%
Hardware	Std. MS Pins & Wedges. Optional- Harden Pins & Wedges.
Props	Adjustable MS CT Props -Main Props with Pipe Head & Secondary support Props with U head.
Walers	Aluminum Extrusion with MS Brackets
Bush	For Standard Panels
Speed of Work	20 to 25 SQM. Per Man day

* 600 x 3000 mm forms available on special request

Advantage

Premium products from the parent company (Western Forms) which guarantee uses up to 2000 repetitions are compatible with Durand Forms products and can be easily used in tandem for larger projects.

Technical Guidance

Technical guidance forms an integral part of the sales. Total integrated technical support and solutions can be offered as an option through our sister company Structura Technologies International which would help maximize the use and repeatability of the products.

Services

Durand Forms is not just in the business of selling forming systems. We will be your partner in terms of service, after sales support and technical guidance. The expertise of the pioneers of Aluminium forms and the world leaders with dozens of patents and exports to over 40 countries in the world comes along with your product.

Guarantee

We promise our services not only verbally but we actually guarantee for our forms in writing, subjected to use as specified and proper maintenance.
